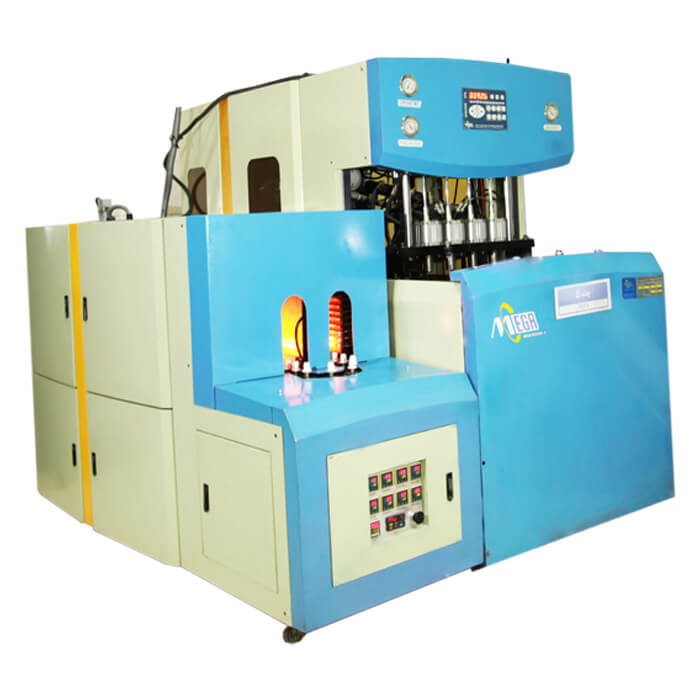

The semi-automatic machine PBB-800, which consists of a separate unit of heater and blower, performs the production of PET bottles from the primary preform in a semi-automatic manner. The lower cost of the mold and the very easy use of this type of device have led to an increasing number of manufacturers interested in PBB-800.

Attributes:

• Production capacity: 600-800 bph
• Bottle type: PET (Polyethylene Terephthalate)
• Number of blower nozzles: 1-6 (varies according to order)
• Bottle dimensions: no restrictions (contact JSM consultants to produce bottles with a volume of more than 3 liters)
• Periform opening: 20-40 (can be changed according to the order)
• Mold driving system: pneumatic
• It has pressure and air injection time settings
• The wind flow rate is 600 lit/min (it varies according to the type of car)
• Injection air pressure 25 bar
• Operating wind pressure is 6 bar
• Cooling water temperature: 7-9 Co
• Input power: 7.5 kw-380VAC
• Rotary heater with 60 preform holders (can be changed if needed)
• The ability to install two types of heating systems, high-quality glass element and infrared according to the order
• It has several thermal zones for accurate heat distribution on the preform
• Preform head cooling system to prevent thread distortion
• Use of fireproof polymers with long life
• It has preform layout sorter
